SHEET METAL FABRICATION
Advanced CNC Processing
Advanced CNC sheet metal fabrication with fiber laser cutting, CNC bending, and precision forming.
CUTTING-EDGE FABRICATION FOR INDUSTRIAL EXCELLENCE
Leveraging state-of-the-art Amada and Trumpf CNC machinery, TN-EQUIPMENT delivers precision sheet metal fabrication with tolerances as tight as ±0.05mm. From fiber laser cutting and turret punching to multi-axis bending and automated forming, we handle everything from prototypes to high-volume production runs exceeding 500 tons monthly.
Specializing in components for warehouse logistics, industrial doors, material handling systems, and custom OEM parts—including pallet racking, safety barriers, machine guards, and HVAC ducting—our integrated CAD/CAM workflow ensures minimal waste under 5% while maintaining CE compliance and superior quality.
We partner with clients on custom designs, providing expert guidance on nesting optimization, material selection, and process engineering to reduce costs and enhance manufacturability. TN-EQUIPMENT turns complex sheet metal challenges into efficient, scalable solutions. The 8-step process ensures seamless flow from simple core to final status.
Fiber Laser Cutting
High-precision cutting up to 30mm thickness with clean edges for dock leveler platforms
Our Process & Tools
Trumpf Fiber Laser Cutter (3kW)
Amada Turret Punch Press
Amada Press Brake (300T)
Automated Sheet Loader
Nesting Software (SigmaNEST)
Edge Rounding Machine
3-Axis CNC Router
Automated Stacking System
Plasma Cutting Table
Coordinate Measuring Machine
Our Engineering Approach
PRECISION SHEET METAL DESIGN
Every fabrication project begins with intelligent part design that maximizes material utilization and minimizes production costs. Our engineers use advanced nesting algorithms and DFM principles to create layouts that reduce waste below 5% while ensuring perfect fit-up and structural performance.
- Advanced nesting & material optimization
- Design for laser cutting & bending efficiency
- Tolerance planning for ±0.05mm accuracy
- Integrated CAD/CAM seamless workflow
COMPLEX GEOMETRY ENGINEERING
From simple brackets to intricate 3D enclosures, we specialize in designing parts that push the limits of sheet metal capabilities. Multi-bend sequences, deep-drawn forms, and hybrid laser-punch features are engineered for manufacturability on our Trumpf and Amada systems.
- Multi-axis bending sequence planning
- Forming & deep drawing feasibility
- Hybrid laser-punch pattern design
- Automated tool path generation
PRODUCTION-READY OPTIMIZATION
We don’t just design parts — we design entire production runs. Flat pattern development, bend allowance calculation, and tooling selection are fine-tuned to guarantee first-part-correct results and maximum throughput on high-volume jobs.
- Bend allowance & K-factor precision
- Tooling & fixture design integration
- Batch size scalability planning
- Cost-per-part reduction analysis
CLIENT-CENTRIC ITERATION
Your feedback drives perfection. We provide rapid 3D previews, DXF flat patterns, and bending simulations so you can visualize the final product before a single sheet is cut. Unlimited revisions ensure the design meets your exact specifications.
- Instant 3D & flat pattern previews
- Bend simulation & collision detection
- Real-time client collaboration portal
- From prototype to 10,000+ units scaling
Fiber Laser Cutting
High-precision cutting up to 30mm thickness with clean edges for dock leveler platforms
CNC Turret Punching
Automated punching for complex patterns and holes in safety barrier panels
Amada Press Brake
Precision bending with ±0.1mm accuracy for high-speed door frames
Sheet Handling
Automated loading for efficient large-batch production of scissor lift components
Quality Inspection
In-line dimensional checks during fabrication of roller shutter slats
Material Stacking
Organized output for seamless workflow integration in cold storage door panels
Core Capabilities
Fabrication Services
- Laser Cutting (Fiber Laser, 3kW)
- CNC Turret Punch Press (Amada)
- CNC Press Brake (Up to 300T)
- Material: SS400, INOX 304/316, Aluminum
- Thickness: 0.5mm - 20mm
- Complex Geometries & Tight Tolerances
- Automated Nesting Software
- Waste Reduction Optimization
Benefits
- High-Speed Production with Minimal Waste
- Scalable from Prototypes to Mass Runs
- Integrated CAD/CAM Workflow
- CE-Compliant Precision Parts
- Custom Tooling & Fixturing
- Reduced Lead Times by 25%
- Versatile Material Compatibility
- Eco-Friendly Process Optimization
Material Selection
Carbon Steel (SS400, A36, S235JR)
Premium grade
Stainless Steel (304, 316, 430, 201)
Premium grade
Aluminum Alloys (6061, 5052, 3003)
Premium grade
Galvanized Steel (DX51D+Z)
Premium grade
High-Strength Low-Alloy (HSLA, S355)
Premium grade
Weathering Steel (Corten A/B)
Premium grade
Brass & Copper Alloys
Premium grade
Pre-Painted Steel
Premium grade
Composite Materials for Prototypes
Premium grade
Titanium Alloys (Limited)
Premium grade
Cold Rolled Steel
Premium grade
Hot Rolled Steel
Premium grade
Carbon Steel (SS400, A36, S235JR)
Premium grade
Stainless Steel (304, 316, 430, 201)
Premium grade
Aluminum Alloys (6061, 5052, 3003)
Premium grade
Galvanized Steel (DX51D+Z)
Premium grade
High-Strength Low-Alloy (HSLA, S355)
Premium grade
Weathering Steel (Corten A/B)
Premium grade
Brass & Copper Alloys
Premium grade
Pre-Painted Steel
Premium grade
Composite Materials for Prototypes
Premium grade
Titanium Alloys (Limited)
Premium grade
Cold Rolled Steel
Premium grade
Hot Rolled Steel
Premium grade
Industry Applications

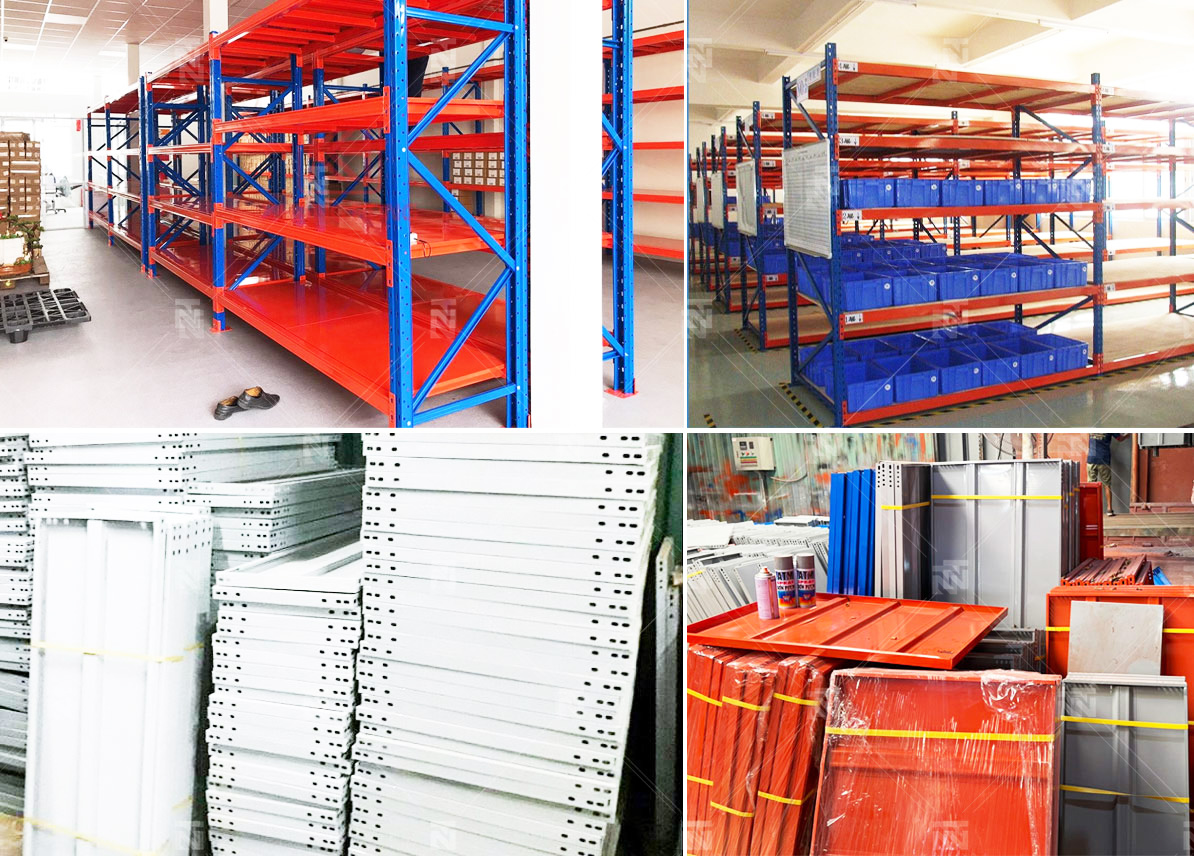

Warehouse Racking Components
Pallet Racking

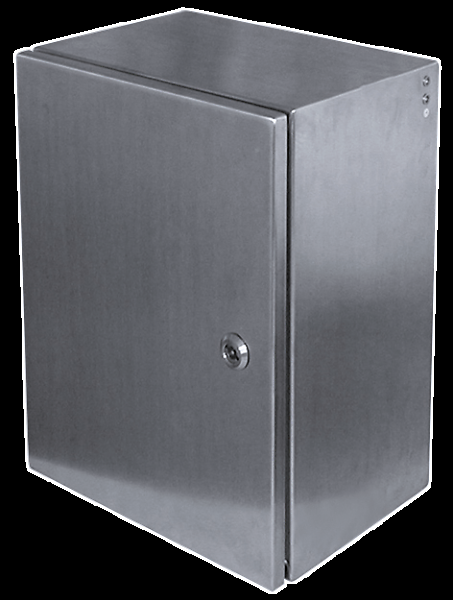

Industrial Enclosures
Electrical Cabinets
Machine Guards & Panels
Safety Barriers
HVAC Ducting
Cold Storage Accessories
Automotive Parts
Steel Door Frames
Construction Fixtures
Fence Post Anchors

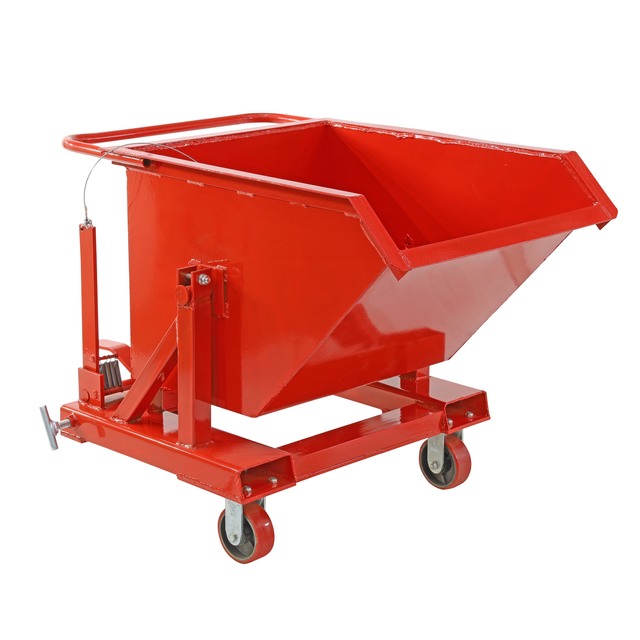

Material Handling
Self-Dumping Hoppers

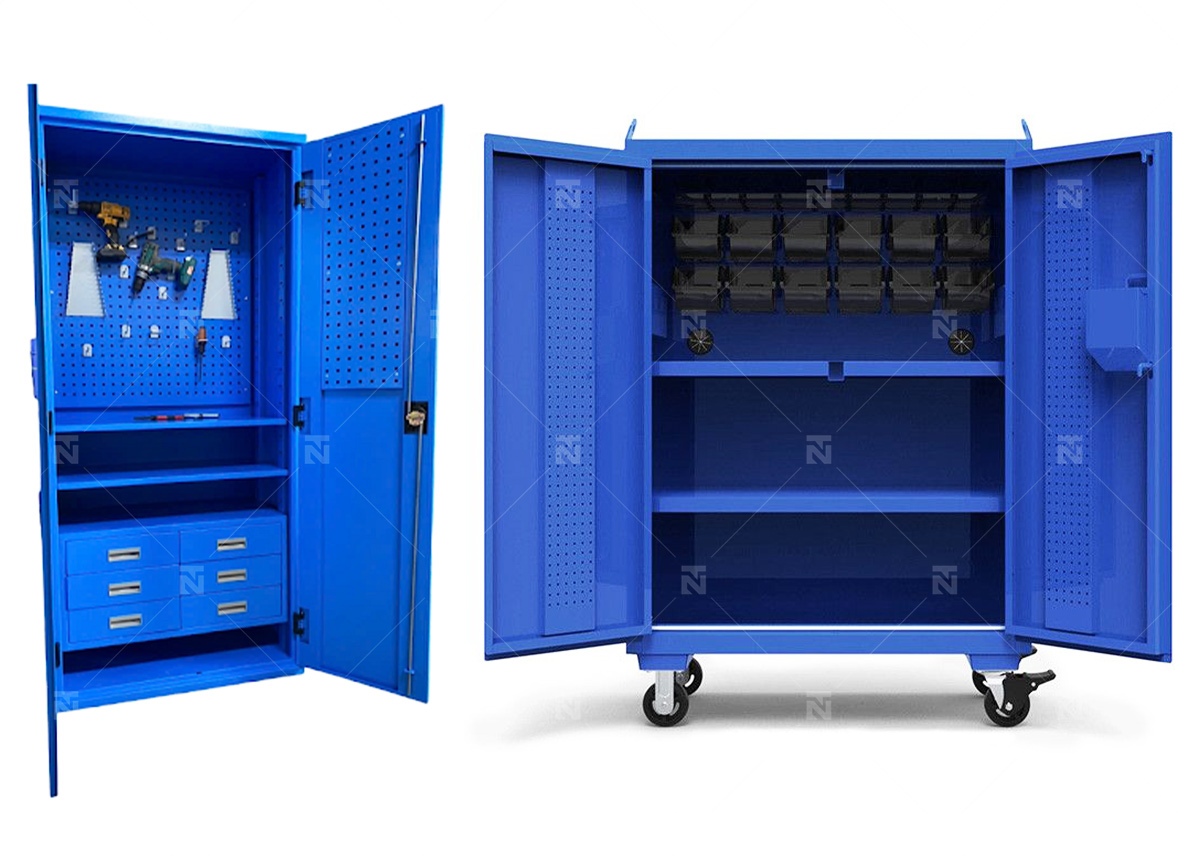

Tool Storage
Mobile Tool Cabinets

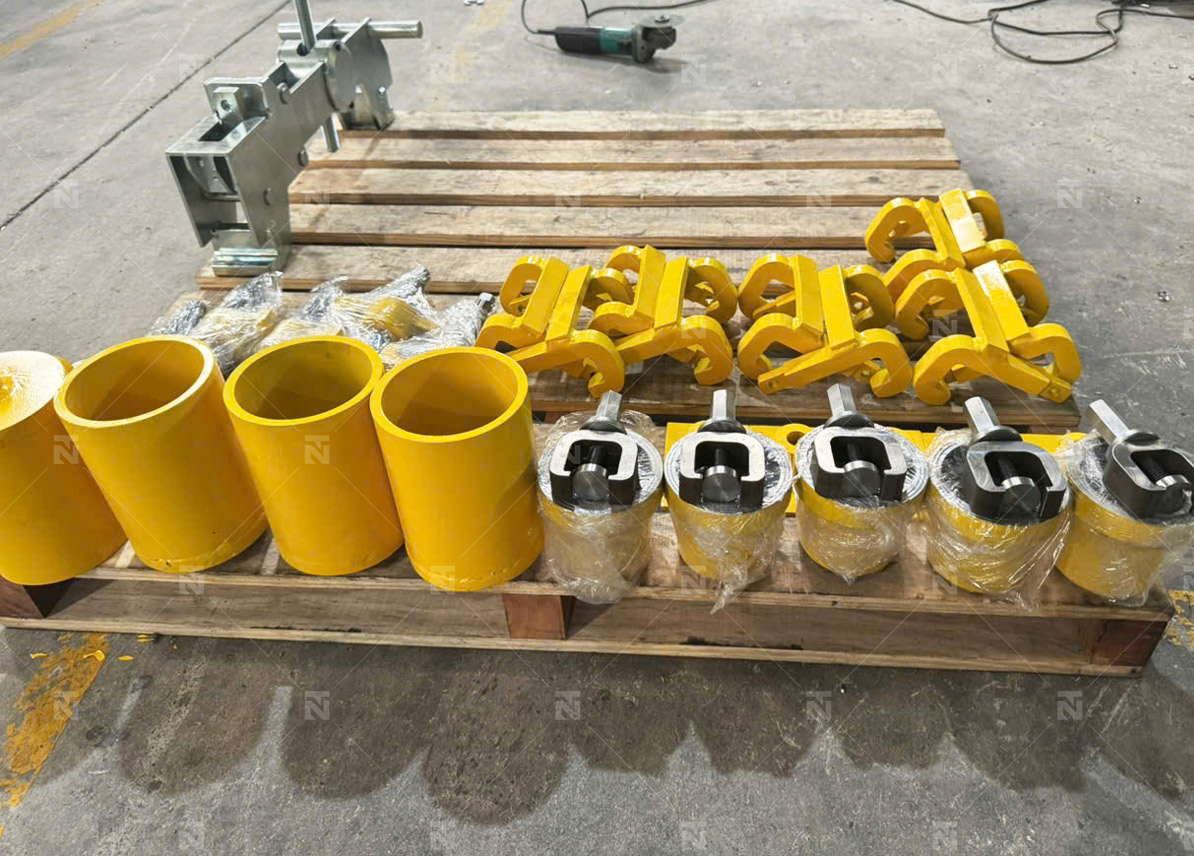

Forklift Attachments
Drum Lifter
ENGINEERING HIGHLIGHTS
Custom Machine Guard Panels
Toyota Vietnam
Fabricated 1,200 panels for automotive assembly line with 0
40% Faster Setup, 0.02mm Tolerance, Annual Savings $120K
HVAC Duct Fabrication
Daikin Air Conditioning
Produced 500+ duct sections for commercial building project, achieving 98% material yield
98% Yield, 15% Cost Reduction, On-Time Delivery
Pallet Racking Components
Lazada Warehouse
Laser-cut and bent 2,000+ rack beams for logistics center, with integrated nesting for zero waste
Zero Waste, 20% Faster Production, Scalable Design
Tool Cabinet Enclosures
Foxconn Vietnam
Manufactured 300 stainless cabinets for electronics factory, with custom perforations for ventilation
Ventilation Optimized, 30% Lighter Design, GMP Compliant
Safety Barrier Panels
Intel Vietnam
Fabricated 800 reinforced panels for manufacturing facility, with custom perforations and 0
0.03mm Precision, Custom Perforations, Enhanced Safety Compliance
Self-Dumping Hopper Assembly
Waste Management Corp
Produced 400 hoppers with optimized nesting, achieving 97% material utilization for waste management
97% Utilization, 400 Units, 30% Cost Reduction

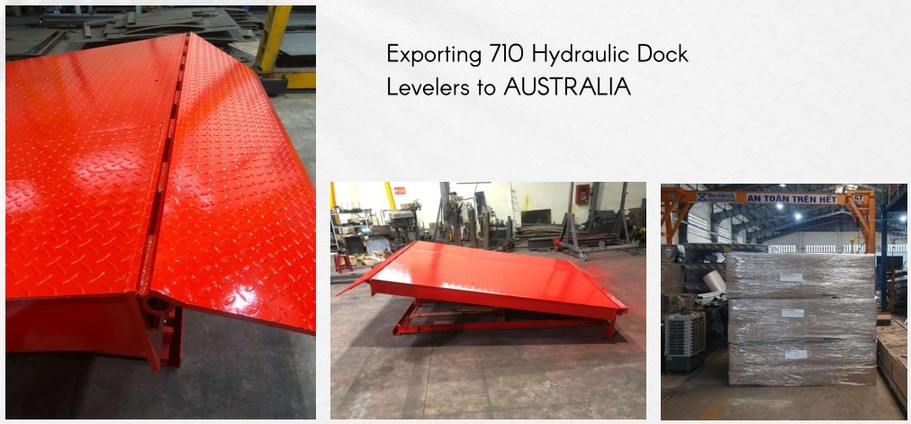

Thien Nam Partnership Project
Thien Nam Services
High-precision sheet metal collaboration with multi-material capability and OEM integration
100% Completion, 8-Step Quote, 35% Error Reduction
